Commonly referred to as ZNE, achieving Zero Net Energy is to have a building that produces the same amount of renewable energy onsite as it consumes. This is measured in a 1-year term. The following building and design strategies will provide insight into how your home can become ZNE.
The following can be applied to your home and will begin during the design phase of the process. Method is offering ZNE packages tailored specifically to projects utilizing some or all of these strategies depending on the climate, site and design..
- Adding insulation to the ceiling has the largest impact on the energy consumed in a home.
- Avoiding thermal bridging through either double stud walls, rigid foam wrap or a combination is another important strategy.
- Use surface mounted lights on the ceilings exposed to the outdoors. The nature of heat transfer reduces an otherwise well insulated R38 ceiling considerably with a small amount of can lights that do not allow for a proper amount of insulation above the light. An example of this is if you have a 1000 sq ft roof with R-38 and then have an attic door that is 10 sq ft that is not insulated so R-1 your resulting average roof R value is only 27.7.
- Tight Construction
- Blower door tests measure the amount of air that escapes a building at a standard 50 Pascals of pressure. In order to achieve a very tight envelope specially formulated tape is commonly used to seal the seams of the plywood during framing.
- Another strategy is to use expanding foam sprayed in a thin layer in the wall cavity that is then blown full of fiberglass. The thin layer of foam seals the airflow and the fiberglass keeps this option at a reasonable price point, this is commonly referred to as ‘flash and fill’.
- Fresh air
- Recommended at a rate of .35 air changes per hour, meaning that all of the air in your house is replaced approximately every 3 hours. If you live in a cold or a hot climate this essentially means that you are heating or cooling the outdoors. To alleviate the lost energy we use a heat recovery ventilator, HRV or ERV depending on your climate. This mechanism has a heat exchanger that recovers the heat or cold from the exiting air and transfers it to the fresh incoming air.
- In addition to having fresh air it is important to pay attention to the contents of the materials used, for this reason Method Homes uses plywood sheathing and only materials that have NAUF, no added urea formaldehyde as well as low and no VOC adhesives and paints.
- Windows and Doors are an integral part of the thermal envelope and it is therefore important to incorporate high performance options.
- Windows are measured with the inverse of the walls R value called U values, the lower the U value the higher the R value and the better insulated the door or window is.
- It is recommended that windows and doors have a .20 U value or less.
- Another strategy is to incorporate windows with varying solar heat gain coefficients, SHGC, depending on the orientation and the energy modeling.
- Passive solar design
- This strategy incorporates a number of the above mentioned techniques into a comprehensive whole. This can best be analyzed and fine-tuned with an energy modeling software such as Energy Plus.
- This process will illuminate the most cost effective strategies and give overall estimated energy consumption. Some items that will be looked at include; building orientation, thermal mass, shading and solar access among other things.
- High efficiency hot water heater.
- As the cost of solar electricity through PV panels has come down it is now more cost effective to use a high efficiency air source heat pump hot water heater rather than have a solar hot water panel installed on your roof, though some people may want this option.
- A heat recovery coil that surrounds the drain to the shower known as a GFX or Powerpipe recovers the heat from the drain and feeds back into the hot water tank.
- High efficiency heating and cooling system.
- A ductless mini split that for every watt consumed can produce 2.5-3 watts of heating or cooling, 250-300% efficient. Another efficient option is a heat pump for heating water for hydronic radiant heat; we utilize the Daikin Altherma system.
- High efficiency appliances and lighting
- From the refrigerator to the washer and dryer it is important to look for energy star ratings and the specific energy loads of each model.
- Lighting is best handled by an integrated approach using well placed windows and LED lighting.
- The final part to building a ZNE home is to install a photovoltaic solar (PV) array that can produce as much energy in a year that you will likely consume in a year. There are various methods to monitor the consumption and production of energy.
- Ultimately the success of a building reaching ZNE will depend on the home owner and the thoughtful decisions that affect the overall energy consumption.
There are numerous certifications that help to quantify different aspects of building a high performing home, from LEED to the living Building Challenge. We can work with you to achieve these certifications or we can simply incorporate various strategies as described above to build you a long lasting, healthy efficient home.

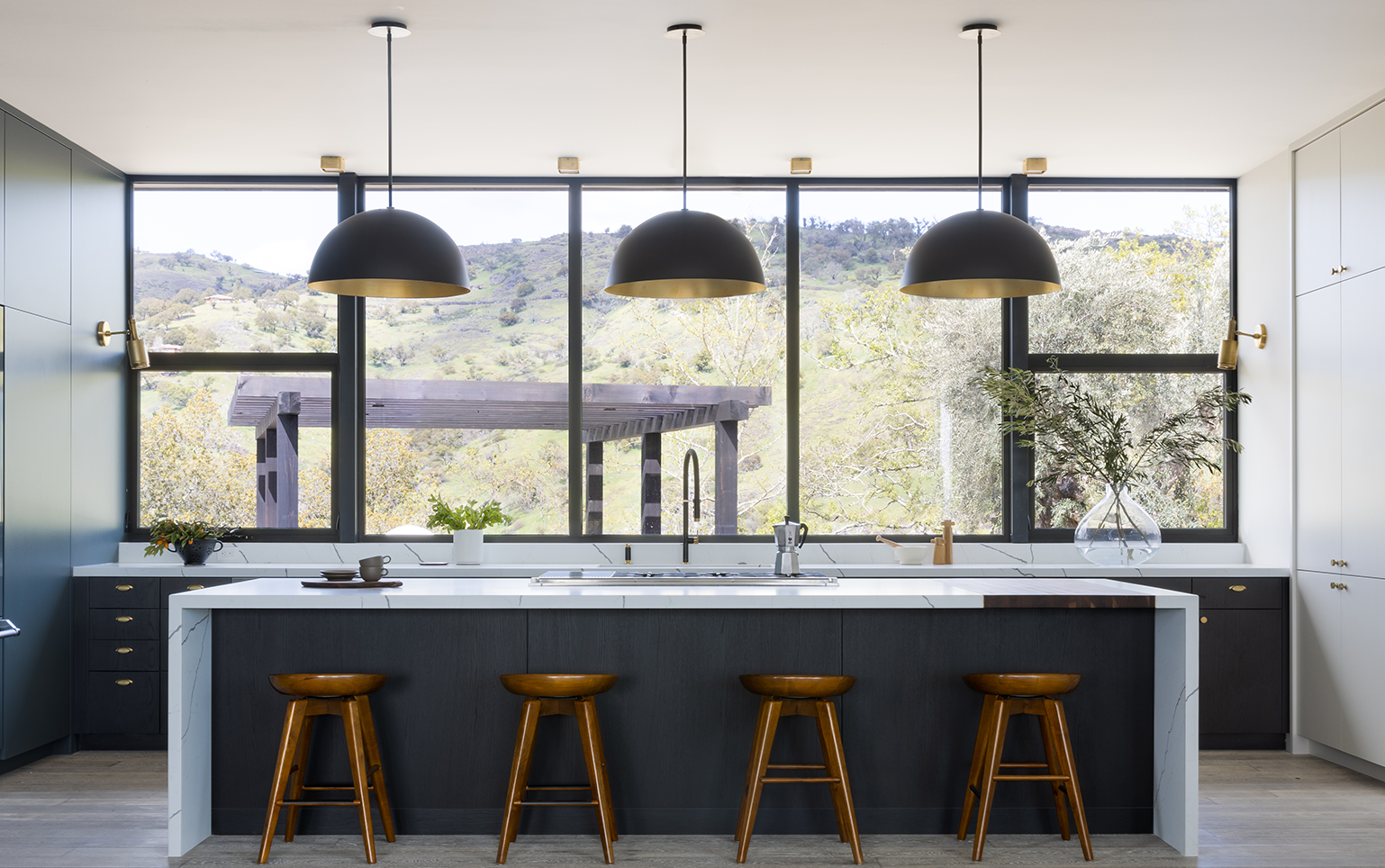

In December of last year, Method Homes built a prefab home that was delivered to Sonoma, California. From the time we broke ground to the time the home was complete, the build from start to finish only took 4 months….and maybe a few days. Regardless, we couldn’t be more happy with the results.
This modern prefab home was designed by Chris Pardo Design: Elemental Architecture of Seattle and Palm Springs. The owners completed the landscaping – including an amazing swimming pool looking over the Southwest exposure. The views of the vines in the valley below are spectacular. We just recently hired Jaime Kowal to shoot the home. See finished photos in our portfolio section here.
Method Homes delivered another prefab home to Alaska, but this time via barge to a remote water front site that is not accessible by car. The project was a custom design by Balance Associates Architects that consists of three modules.
On 04, Mar 2014 | In blog | By methodhj
The Method team recently traveled to Palm Springs, California to participate in 2014′s Modernism Week as part of the Prefab Showcase and Modern Living Expo with Paradigm, our prototype home for the Paradigm Series by Bogue Trondowski Architects.
2013 has been an eventful year for Method Homes. It has been great looking back on all of the year’s events, photos, projects, and benchmarks. Method is thankful for our amazing team, partners, clients, and the opportunity to continue to break the bounds of what is possible with prefab construction. Here is a look at some of our 2013 highlights.
